Photos of the model range. Size, colour and equipment may vary; included items are listed below.

Full kit — adults

XR-503002

All-in-One L

Price on request

Colors (6)

The color can be customized to your preference — contact us with your own design.

Contact dealer Test drive

Foundation-based funding

Standard line models are eligible for foundation-based funding. Each foundation has its own rules and application process.

About the product

The fully equipped xRover L for adults. Maximum kit with metal TH 900 joints and a full accessory line-up.

The xRover All-in-One L is the top-of-the-range adult chair for users up to 120 kg and roughly 185 cm in height. It pairs the full All-in-One kit with a robust L-size frame. 20" solid rear wheels with 70 mm drum brakes deliver reliable braking even under heavy load. Metal TH 900 joints increase the durability and safety of the entire construction. The package includes a complete cycle set, 14" outdoor wheel, windstopper, rain cover, Tropiko mosquito net, postural insert and a wheel bag. The 1,045 mm wheelbase ensures maximum stability. Jogger set included. ePower Assist and Beach Set are sold separately.

Complete cycle set20" solid wheelsWindstopper + rain coverTropiko (mosquito net)Postural insertWheel bag

What's in the box

Folding aluminium frame with TH 900 joints

Seat with 5-point harness

Postural insert

Canopy

Windstopper

Rain cover

Tropiko (mosquito net)

Cycle set — tow bar for 26–29" bikes

14" outdoor wheel with fork

6" buggy front wheel

20" solid rear wheels with drum brakes

Wheel bag

Technical specifications

Frame

MaterialAluminium EN AW 6060/6061/6082

Frame weight4.4 kg

JointsMetal TH 900

FinishAnodizing / powder coating

FoldingYes — compact fold (handle, arch, wheels)

FastenersStainless steel A2

Dimensions

Wheelbase1,045 mm

Doorway clearance76 cm (guaranteed 80 cm)

Seat width36 cm (seated)

Seat depth35 cm

Backrest height103 cm

Handle height112 cm (standard) / 119 cm (long)

Wheels & brakes

Rear wheels20" solid with drum brakes

Outdoor front wheel14" with fork

Buggy front wheel6" swivel 360°

Drum brakes70 mm diameter

Rear-wheel camber12°

Load & safety

Max. load120 kg

Max. user height185 cm

Safety harness5-point with safety strap

Ready weightdepending on installed components — 14.9 – 19.9 kg

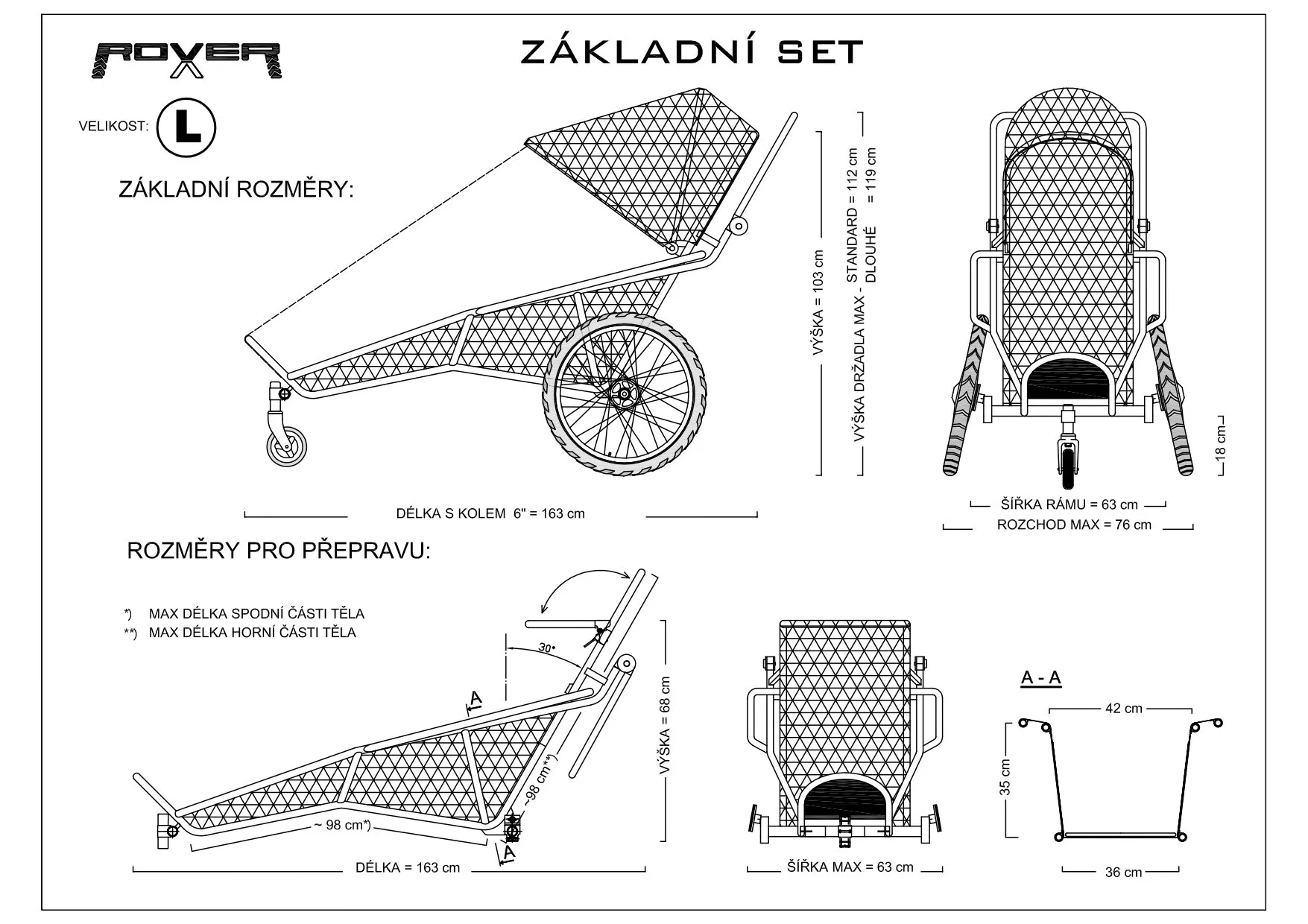

Technical drawing

Downloads

User manual — xRover LPDF Manual — Beach setPDF Manual — SKI setPDF Tech sheet — front (L)PDF Tech sheet — back (L)PDF Notice — do not sit on the chairPDF User manual — xRover Reha (DE)PDF Technical data — xRover Reha (DE)PDF Scope of delivery — xRover Reha (DE)PDF EU Declaration of Conformity — xRover Reha (DE)PDF

Certifications

MDR (EU 2017/745)

Swissdamed

ISO 7176 (wheelchairs)

Class I medical device
